Bow shock shock: Its slower than we thought

Posted: May 18, 2012 by tallbloke in Astrophysics, cosmic rays, Electro-magnetism, Solar physics, solar system dynamics, Travel

Here’s a snippet from the Institute of Physics website at This is of interest in relation to Dayton Miller’s interferometry results from the 1930’s, which measured anisotropy in the speed of light.

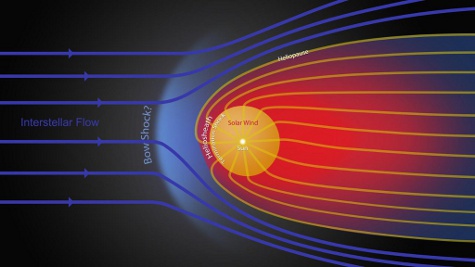

New analysis of IBEX data – which has been carried out by David McComas of the Southwest Research Institute in Austin, Texas, and an international team – suggests that the bow shock does not exist after all. In other words, the solar system is not moving as fast as we though relative to the interstellar medium.

Launched in 2008, IBEX orbits the Earth and is designed to study fast-moving neutral atoms. What McComas and colleagues did was to use IBEX to characterize neutral atoms from the interstellar medium that cross into the heliosphere. Because these atoms are not electrically charged, they are not affected by magnetic fields – and so their speed should correspond to the relative velocity of the interstellar medium.

The study suggests that the relative speed is about 84,000 km/h, which is about 11,000 km/h less than previously thought. In addition, data from IBEX and earlier Voyager missions suggest that the magnetic pressure found in the interstellar medium is higher than expected. When these parameters were fed into two independent computer models of the heliosphere, both suggested that a bow shock does not exist, but rather a gentler “bow wave” occurs at the interface.

Read the full article here.

Dayton Miller concluded that the Earth was drifting at a speed of 208 km/sec. towards an apex in the Southern Celestial Hemisphere, towards Dorado, the swordfish, right ascension 4 hrs 54 min., declination of -70° 33′, in the middle of the Great Magellanic Cloud and 7° from the southern pole of the ecliptic. This is based upon a measured displacement of around 10 km/sec. at the interferometer, and assuming the Earth was pushing through a stationary, but Earth-entrained ether in that particular direction, which lowered the velocity of the ether from around 200 to 10 km/sec. at the Earth’s surface.1

208km/sec is 748800km/h, close to an order of magnitude faster than the 73000km/h inferred from the IBEX data. This would imply that the local interstellar medium is also entrained, to a slightly lesser extent, by the heliosphere. Perhaps we’ll get a better idea of the gradient as Voyager moves further beyond the heliopause in years to come.

1) Dayton Miller, “The Ether-Drift Experiment and the Determination of the Absolute Motion of the Earth”, Reviews of Modern Physics, Vol.5(2), p.203-242, July 1933.

  1. Tim Cullen says:

    I am always curious when a heliosphere illustration excludes:
    1) Polar Cusps
    2) Radiation Belts
    3) An extended “tail”

    I would have expected this:

    To be incorporated into this:

    Has anyone come across an explanation?

  2. vukcevic says:

    Tim Cullen says: May 18, 2012 at 8:54 am
    I am always curious when a heliosphere illustration excludes …..

    Or ever show or mention electric currents flowing in and out of the sun

    The existence of the radial component of the electric current flowing toward the Sun is revealed in numerical simulation. The total strength of the radial current is ~ A. The only way to fulfil the electric current continuity is to close the radial electric current by means of field- aligned currents at the polar region of the Sun. Thus, the surface density of the closure current flowing along the solar surface can be estimated as ~4 A/m, and the magnetic field produced by this current is T, i.e. several percent of the intrinsic magnetic field of the Sun. This seems to mean that any treatment of the solar magnetic field generation should take into account the heliospheric current circuit as well as the currents flowing inside the Sun.
    gravity is only holding things together, it is its electric and magnetic forces that make our planet what it is.

  3. Brian H says:

    Edit: “as fast as we though relative to” thought
    Bubbles inside bubbles.
